PIC16f628 Binary Clock
Written by Walle on Build this nice binary led clock as first 16f628a project. Got the idea from Anthony Liekens ( <a target="_blank" href="http://anthony.liekens.net/index.php/Misc/AnalogBinaryClock"> read more about it here. </a> )
It has 2 buttons for setting hours and minutes.

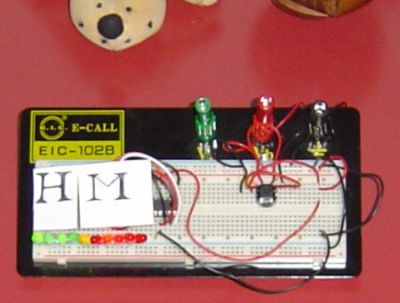

Shows time in binary the picture below was taken at 9:23 AM as you can read on the clock :) :
Other good tutorials I found :
pic tutorial in asm
JAL Manual
And my finished rcd-programmer has been soldered on pcb :
Here is a clock testrun on pcb, it is showing a new minute every second.
In essence it's running 60 times faster than normal to bugtest it :
